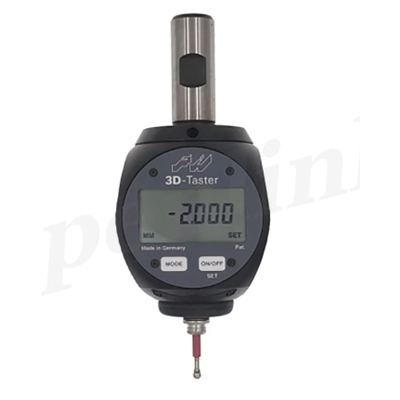

Haimer 0.001mm High-precision 3d Universal Digital Display Edge Finder 80.460.00 Three-dimensional Precision Measurement

Features：

1. The digital 3D edge finder is a further development of the mechanical edge finder. It is used on milling and EDM machining equipment.

2. The machine tool spindle can be positioned on the reference edge quickly and safely. The subtle approaching process can be accurately displayed on the digital screen. Because the spindle can be positioned exactly on the contact edge, the zero position can be set without calculation.

3. Large digital screen display with a resolution of 0.001mm. Numbers are also easily read from long distances (eg on large machining centers). The screen is waterproof and dustproof (IP64) and can be stored in the tool magazine.

4. Note: The measurement accuracy of 0.005mm can be achieved by using HAIMER's original probe.
